Bearings
Looking for high-quality industrial bearings? We supply a complete range of miniature bearings,thin section bearings, stainless steel bearings, ceramic bearings. We help you find the right solution for every application.
Miniature Bearings
Miniature bearings are essential components in both everyday devices and highly demanding environments such as high/low temperatures, vacuum systems, corrosive settings, and high-speed machinery.
R1-5
| Bore Dia | 0.09375″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.3125″ |
| Outer Dia Tolerance | -0.0003″ to 0″ |
| Width | 0.1094″ |
| Width Tolerance | -0.005″ to 0″ |
| Ball Dia | 0.06252″ |
$1.95
R144
| Bore Dia | 0.125″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.25″ |
| Outer Dia Tolerance | -0.0003″ to 0″ |
| Width | 0.0937″ |
| Width Tolerance | -0.005″ to 0″ |
| Ball Dia | 0.03941″ |
$1.75
R1
| Bore Dia | 0.05556″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.1875″ |
| Outer Dia Tolerance | -0.0003″ to 0″ |
| Width | 0.0781″ |
| Width Tolerance | -0.005″ to 0″ |
| Ball Dia | 0.03941″ |
$1.75
R156
| Bore Dia | 0.1875″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.3125″ |
| Outer Dia Tolerance | -0.0003″ to 0″ |
| Width | 0.1094″ |
| Width Tolerance | -0.005″ to 0″ |
| Ball Dia | 0.03941″ |
$2.4

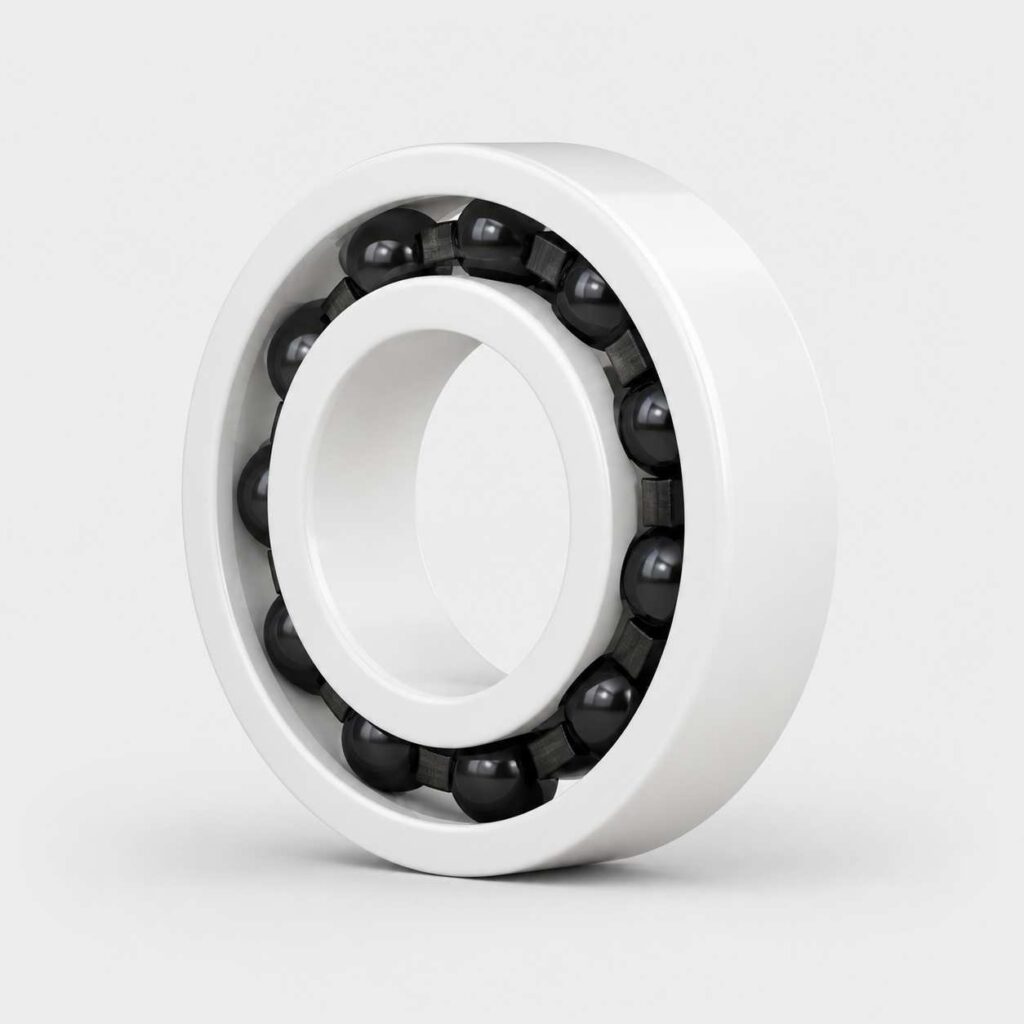

Ceramic Bearings
Ceramic bearings deliver high speed, low friction, and superior temperature resistance
CE3200ZR
| Bore Dia | 10 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| Outer Dia | 30 mm |
| Outer Dia Tolerance | -0.009 mm to 0 |
| Width | 14 mm |
| Width Tolerance | -0.12 mm to 0 |
| Chamfer Dimension (r1 2)(min) | 0.6 mm |
CE3201ZR
| Bore Dia | 12 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| Outer Dia | 32 mm |
| Outer Dia Tolerance | -0.011 mm to 0 |
| Width | 15.9 mm |
| Width Tolerance | -0.12 mm to 0 |
| Chamfer Dimension (r1 2)(min) | 0.6 mm |
CE3202ZR
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| Outer Dia | 35 mm |
| Outer Dia Tolerance | -0.011 mm to 0 |
| Width | 15.9 mm |
| Width Tolerance | -0.12 mm to 0 |
| Chamfer Dimension (r1 2)(min) | 0.6 mm |
CE3205ZR
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01 mm to 0 |
| Outer Dia | 52 mm |
| Outer Dia Tolerance | -0.013 mm to 0 |
| Width | 20.6 mm |
| Width Tolerance | -0.12 mm to 0 |
| Chamfer Dimension (r1 2)(min) | 1 mm |
Stainless Steel Bearings
Stainless Steel Bearings are engineered for environments where corrosion resistance, hygiene, and durability are essential.
S16002 Stainless Steel Bearings
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 32 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 8 mm |
| Width Tolerance | -0.120mm to 0 |
S16005 Stainless Steel Bearings
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 47 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 8 mm |
| Width Tolerance | -0.120mm to 0 |
S16006 Stainless Steel Bearings
| Bore Dia | 30 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 55 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 9 mm |
| Width Tolerance | -0.120mm to 0 |
S16008 Stainless Steel Bearings
| Bore Dia | 40 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 68 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 9 mm |
| Width Tolerance | -0.120mm to 0 |
Thin Section Bearings
Thin section bearings are engineered for space-saving, lightweight, and low-friction performance while maintaining high precision.
63800
| Bore Dia | 10 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 19 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 7 mm |
| Width Tolerance | -0.120mm to 0 |
$3.60
63802
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 24 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 7 mm |
| Width Tolerance | -0.120mm to 0 |
$3.80
63803
| Bore Dia | 17 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 26 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 7 mm |
| Width Tolerance | -0.120mm to 0 |
$3.22
63805
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 37 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 10 mm |
| Width Tolerance | -0.120mm to 0 |
$3.65
